Details

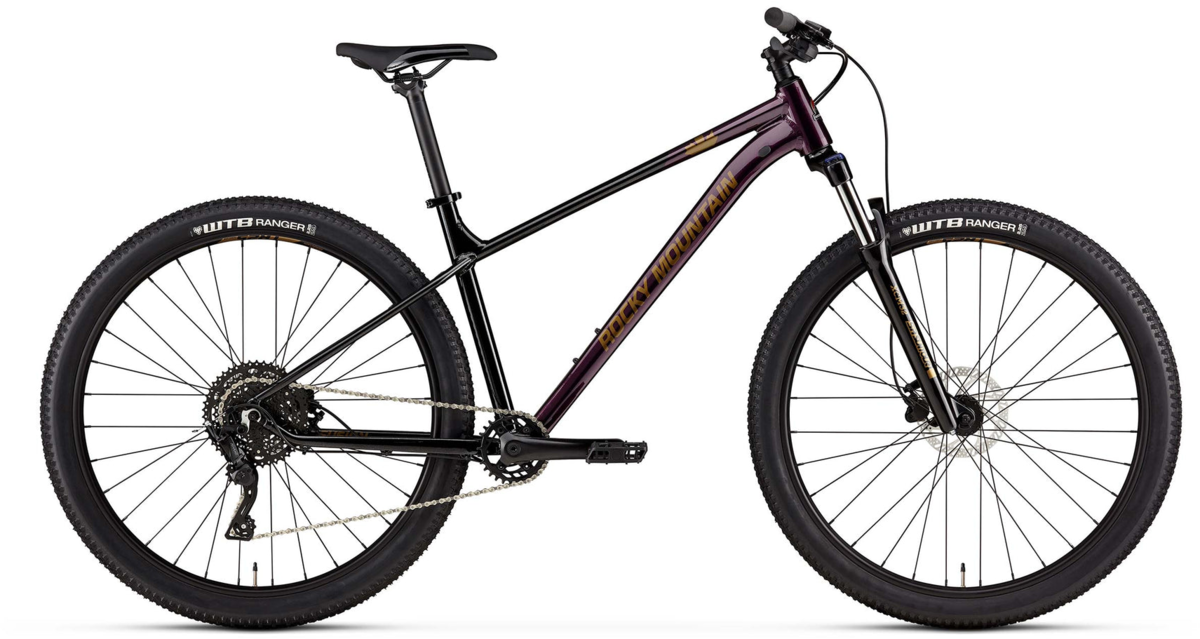

The Fusion is the perfect blend of efficiency, capability, and reliability on the trail. The Fusion's™ responsive handling characteristics and comfortable geometry will help you mix up your ride from the pathway to the trail, and onto the singletrack. The Fusion's™ geometry has been optimized to provide you with the best possible experience when heading out for a ride.
SM | MD | LG | XL | |
---|---|---|---|---|
Top Tube Horizontal (mm) | 589 | 616 | 643 | 671 |
Head Tube Angle (deg) | 66.5 | 66.5 | 66.5 | 66.5 |
Head Tube Length (mm) | 95 | 100 | 110 | 120 |
Seat Tube Angle (deg) | 74.5 | 74.5 | 74.5 | 74.5 |
Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
Rear Centre (mm) | 445 | 445 | 445 | 445 |
Bottom Bracket Drop (mm) | 60 | 60 | 60 | 60 |
Reach (mm) | 425 | 450 | 475 | 500 |
Stack (mm) | 593 | 598 | 607 | 616 |
Standover Height (mm) | 763 | 776 | 786 | 801 |
Wheelbase (mm) | 1153 | 1180 | 1209 | 1238 |
Specs
Frame | Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube | Dropper Post Compatible Rear Triangle |
---|---|
Fork | Suntour XCM32 DS NLO 100mm |
Rims | Rocky Mountain TR25 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl |
Hubs | Rocky Mountain QR |
Spokes | 2.0 Stainless |
Tires | F: WTB Ranger Comp 29 x 2.25 // R: WTB Ranger Comp 29 x 2.25 |
Bottom Bracket | Sealed Cartridge Bearing |
Crankset | Rocky Mountain Microdrive 3PC | 30T | 76mm Asymmetrical BCD | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm |
Shifters | MicroShift Xpress Plus 9spd |
Rear Derailleur | MicroShift Advent With Clutch |
Cassette/Freewheel | MicroShift CS-H093 11-46T |
Chain | KMC X9 |
Brakes | Tektro HD-M280 | Shimano Pad Compatible |
Handlebars | Rocky Mountain XC | 740mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
Tape/Grips | Rocky Mountain Lock On Light |
Stem | Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm |
Headset | Rocky Mountain ZS44|56 | Loose Ball Bearings | 1-1/8" Reducer Crown Race |
Seatpost | Rocky Mountain 30.9mm |
Saddle | Rocky Mountain 148 Steel |
* Subject to change without notice.
